Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter

Product Categories
Shenzhen Xinhu Communication Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter

Brand Name : Kimghz technology

Model Number : KH-MICO612

Certification : CE

Place of Origin : Original/CHINA

MOQ : 10 Pieces

Price : negotiation

Payment Terms : L/C,T/T,Western Union

Supply Ability : 10000pieces/month

Delivery Time : 2-5days

Packaging Details : International Standard Packing

Model : KH-MICO612

Frequency : 3060MHz~3500MHz

Infrared image resolution : 640× 512

Pixel pitch : 12μm

Operating frequency band : 8~14μm

Image frame rate : ≤50Hz

Focus Mode : Manual

Detector type : Vanadium oxide uncooled infrared focal plane array

Contact Now

Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Designed specifically for outdoor engineering and industrial scenarios, this 640P Infrared Thermal Imaging Camera Module stands out as a compact, lightweight, and easily integrable solution. Its high-sensitivity uncooled VOx infrared detector enables the module to produce clear, detailed thermal images, making fast and accurate target detection achievable even in pitch-black darkness or harsh working environments.
With adjustable shutter response, hotspot tracking capability, multiple palette display options, and three available resolution configurations (256×192 / 384×288 / 640×512), this thermal imaging module is highly adaptable to UAV applications, security surveillance, industrial flaw detection, firefighting, search & rescue operations, and outdoor monitoring systems. The inclusion of CVBS and USB outputs ensures hassle-free integration with various hardware platforms and video transmission devices.
Technical Specifications
Brand Name Kimghz technology
Model Number KH-MICO612
Infrared image resolution 640×512
Pixel pitch 12μm
Operating frequency band 8~14μm
Image frame rate ≤50Hz
Focus Mode Manual
Detector type Vanadium oxide uncooled infrared focal plane array

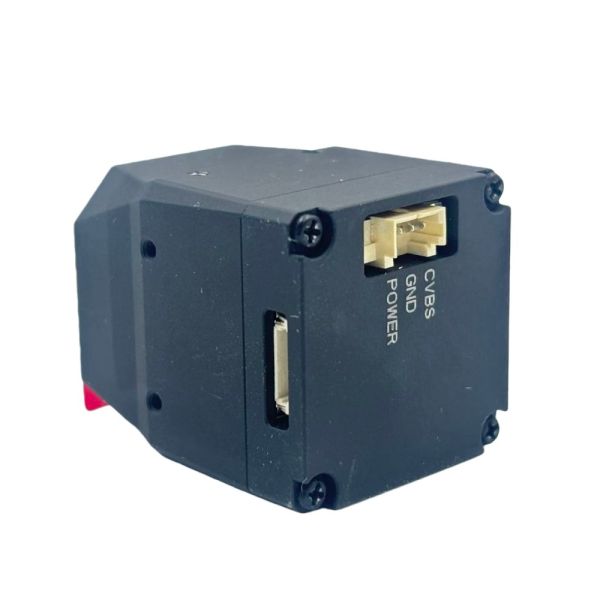

Product Images
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
Professional Outdoor Thermal Imaging Camera with Intelligent Hotspot Tracking & Adjustable Shutter
3.3GHz FPV VTX installation example on drone frame
Key Features
  • High-Sensitivity VOx Infrared Detector: Utilizes an uncooled vanadium oxide focal plane array covering the 8-14μm spectral range, which ensures stable and precise thermal imaging results.
  • Multiple Resolution Options: Offers 256×192, 384×288, and 640×512 infrared resolutions to meet different performance requirements and budgetary needs of various projects.
  • Steady 50Hz Frame Rate: Boasts a refresh rate of up to 50Hz, ensuring real-time thermal video with smooth playback and no lag or motion distortion.
  • CVBS / USB Video Output: Provides standard PAL (720×576) video output, enabling convenient integration with displays, recorders, and wireless video transmission equipment.
